pvlib.irradiance.isotropic

pvlib.irradiance.isotropic(surface_tilt, dhi, return_components=False)

Determine diffuse irradiance from the sky on a tilted surface using the isotropic sky model.

\[I_{d} = DHI \frac{1 + \cos\beta}{2}\]

Hottel and Woertz’s model treats the sky as a uniform source of diffuse irradiance. Thus, the diffuse irradiance from the sky (ground reflected irradiance is not included in this algorithm) on a tilted surface can be found from the diffuse horizontal irradiance and the tilt angle of the surface. A discussion of the origin of the isotropic model can be found in [2].

Parameters:

• surface_tilt (numeric) – Panel tilt from horizontal. See surface_tilt. [°]

• dhi (numeric) – Diffuse horizontal irradiance, must be >=0. See dhi.

• return_components (bool, default False) – If False, sky_diffuse is returned. If True, diffuse_components is returned. For this model, return_components does not add more information, but it is included for consistency with the other sky diffuse models.

Returns:

• numeric, Dict, or DataFrame – Return type controlled by return_components argument. If False, sky_diffuse is returned. If True, diffuse_components is returned.

• sky_diffuse (numeric) – The sky diffuse component of the solar radiation. [Wm⁻²]

• diffuse_components (Dict (array input) or DataFrame (Series input)) –

  Keys/columns are:

  • poa_sky_diffuse: Total sky diffuse

  • poa_isotropic

References

[1]

Loutzenhiser P.G. et al. “Empirical validation of models to compute solar irradiance on inclined surfaces for building energy simulation” 2007, Solar Energy vol. 81. pp. 254-267 DOI: 10.1016/j.solener.2006.03.009

[2]

Kamphuis, N.R. et al. “Perspectives on the origin, derivation, meaning, and significance of the isotropic sky model” 2020, Solar Energy vol. 201. pp. 8-12 DOI: 10.1016/j.solener.2020.02.067

Examples using pvlib.irradiance.isotropic

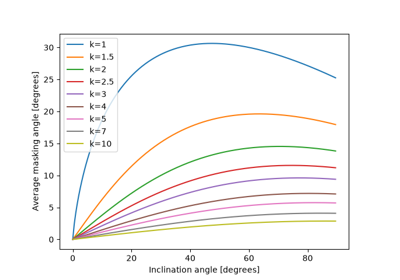

Diffuse Self-Shading
